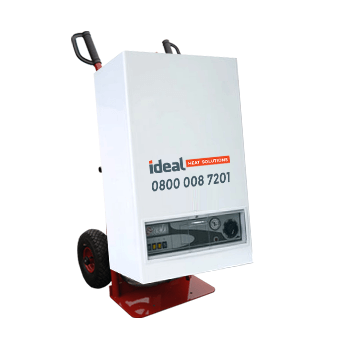

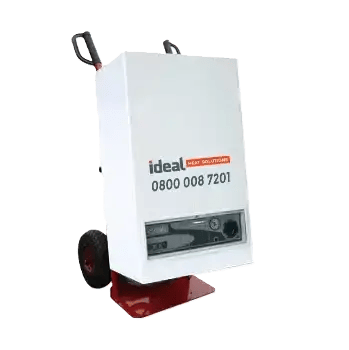

22kW Trolley Mounted Electric Boiler (Three Phase Supply)

• Maximum Output: 22kW electric boiler
• Boiler: ACV E-Tech W
• Burner: Electric
• Pumps: Yes
• Temperature Range: 20-85°C
• Electrical: 3 phase 3 amps 5 pin
• Water Connection: Flow/Ret/Cold feed 1" BSP
• Flow Rate: 500 litre/hour at 50°C
• Dimensions (LxWxH): 600mm x 550mm x 1100mm
• Weight: 50 kg
• Pressurisation Plant: Included
• Telemetry: Not available
• Power Consumption: 14.4/21.5kW
• Variable Temperature: Yes
• Noise: 35dB at 10m
• Handling Options: Trolley mounted
• Maximum Static: 3 BAR

Nicknamed the Hot Boy, our 22kW electric hot water heating boiler can deliver instant, consistent heat to large domestic, leisure, commercial and industrial properties. We work with clients with sites of all scales, and this electric mobile boiler has proven to be effective in a diverse array of settings. Whether it’s needed for a sports hall, shop, garage or factory, our team will suggest the Hot Boy if it will fulfil your specific needs.

Our highly trained OFTEC-approved Climate Solution heating engineers can fit this robust systems easily, thanks to its compact size and portability. It means that the installation process has a quick turnaround, and any potential disruption is kept to an absolute minimum. This electric unit has a 22kW heat capacity and a three-phase supply. It can be connected to a variety of heating systems to maximise effectiveness.

Ideal Heat Solutions will recommend a heating unit such as this depending on a range of factors about your facility. Our engineers don’t believe in the one-size-fits all approach to heating hire supplies. We tailor our services to the needs of your site and always go out of our way to find the most effective solution to fulfil requirements.

• Leisure Centres
• Refiniries
• Factories
• Dry Screeding
