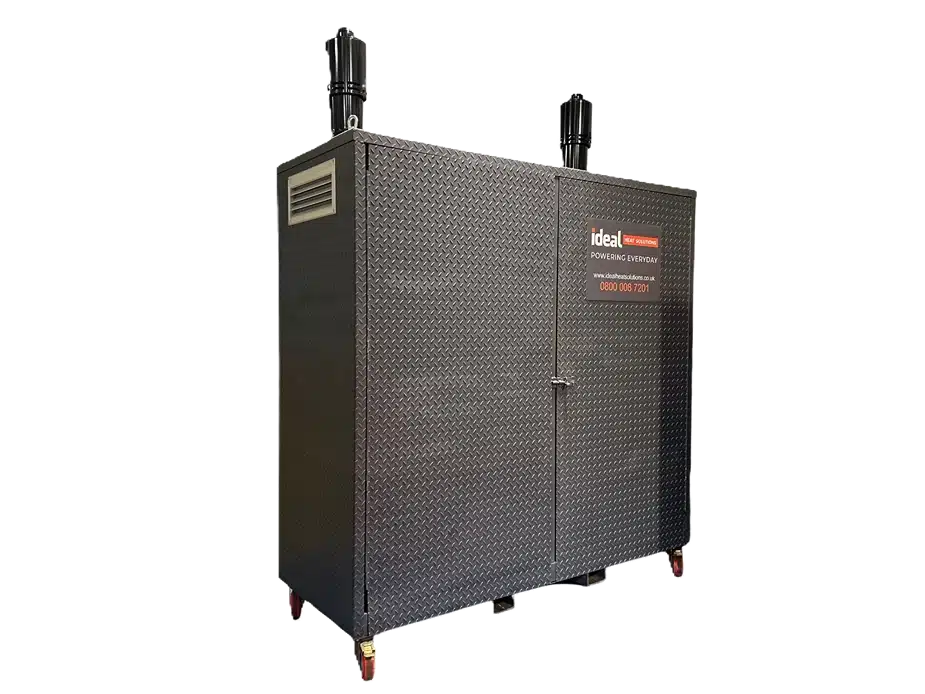

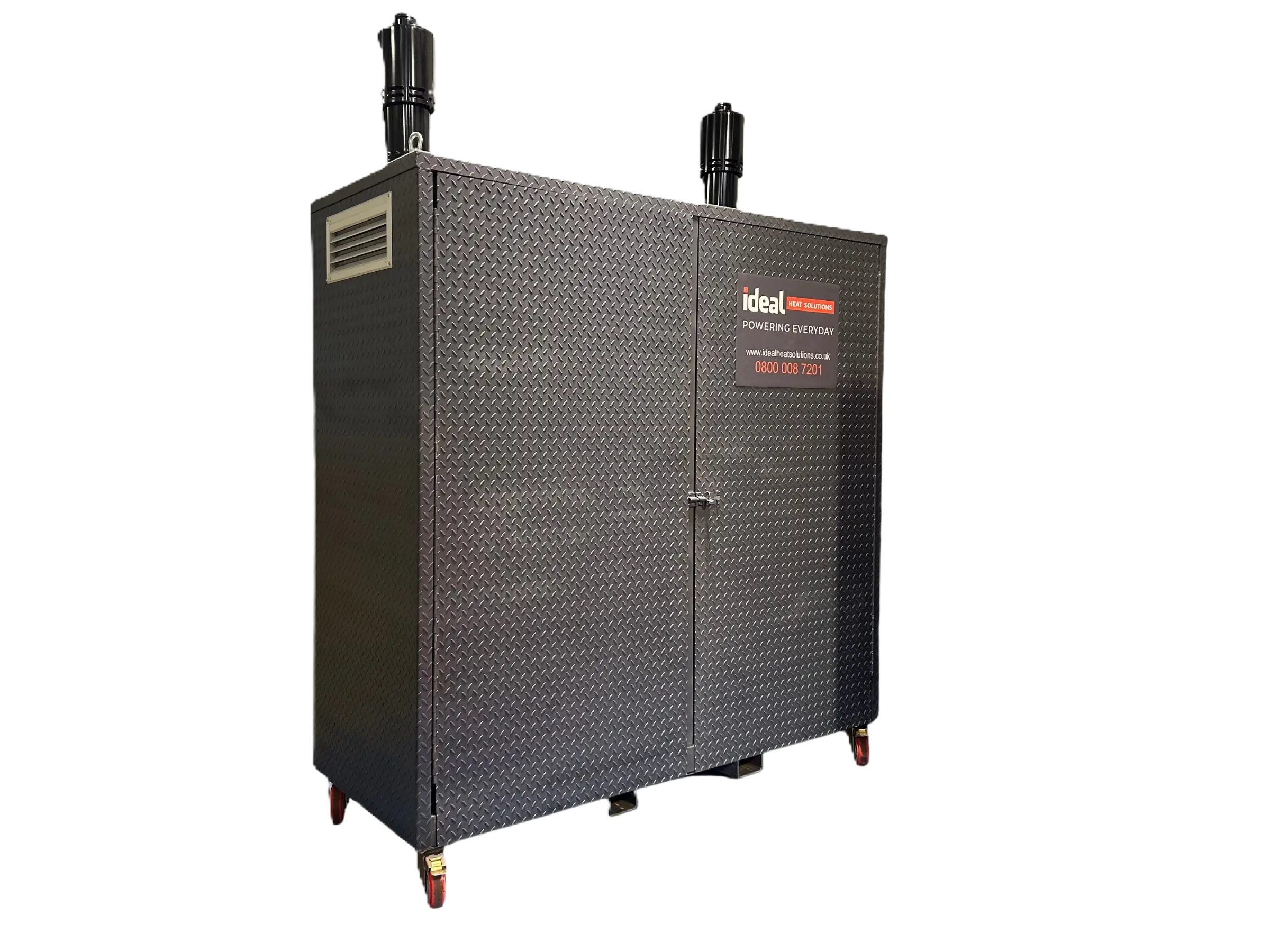

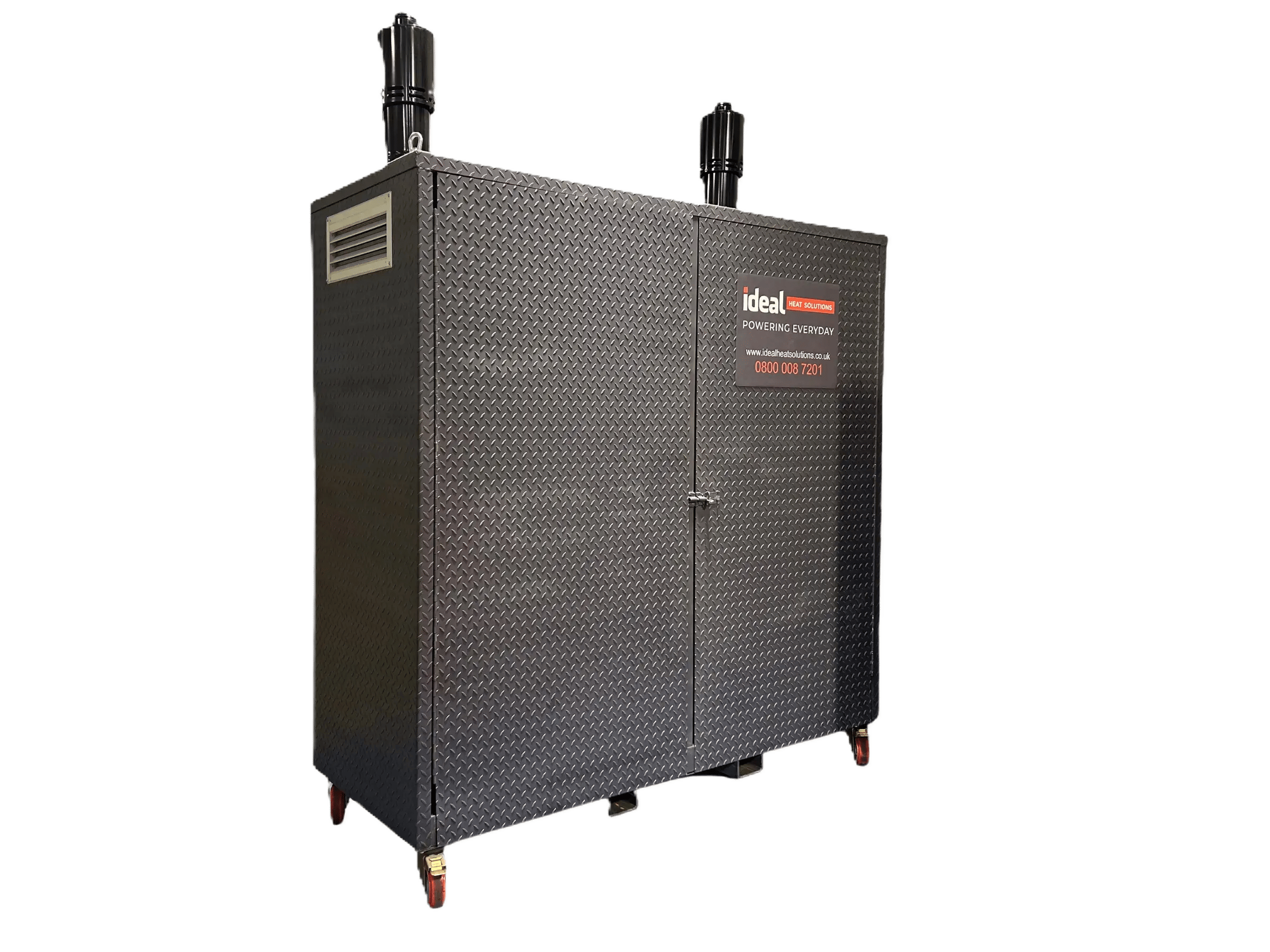

140kW Oil Boiler - Slimline Condensing

• Maximum Output: 140kW Oil
• Boiler: 2 x Grant Vortex Pro 70kW
• Burner: Riello RDB 3.2
• Pumps: Grundfos Magna 3
• Temperature Range: Min: 55°C Max: 75°C
• LTHW Connections: 2" BSP
• Electrical: 16 amp 1 phase
• Water Connection: 15mm
• Flow Rate: 78.5m3/h and 1.6MPa
• Dimensions (LxWxH): 2350mm x 900mm x 2400mm (plus 730mm flue stub)
• Weight: 1.5 tonnes (approx.)
• Pressurisation Plant: Included - Primary: 35 litres Secondary: 80 litres
• Variable Temperature: Yes
• Noise: 55 dBA @1m
• Handling Options: Lifting Eyes / Forklift Pockets / Wheels for final positioning
• Maximum Static: 3 Bar

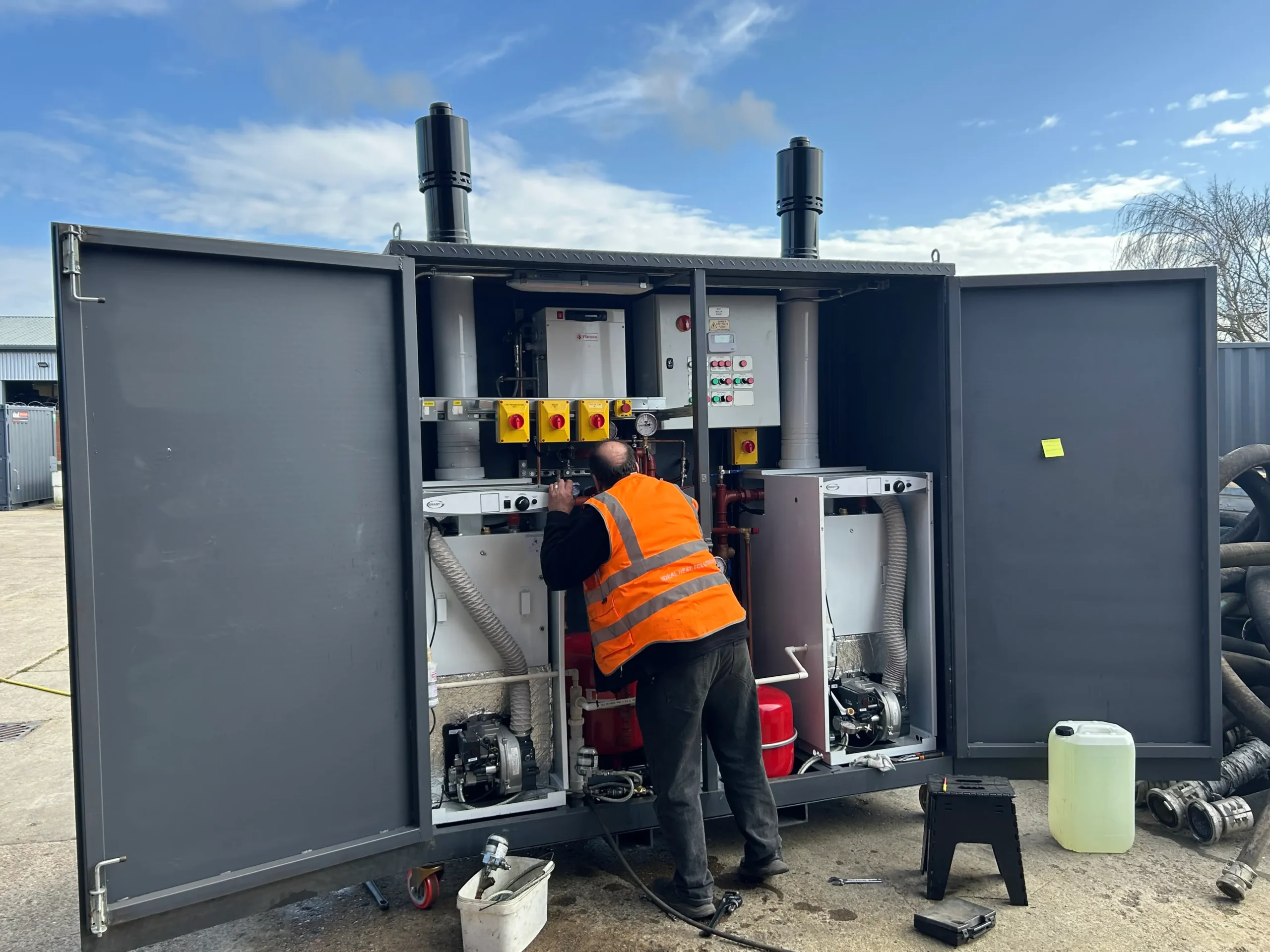

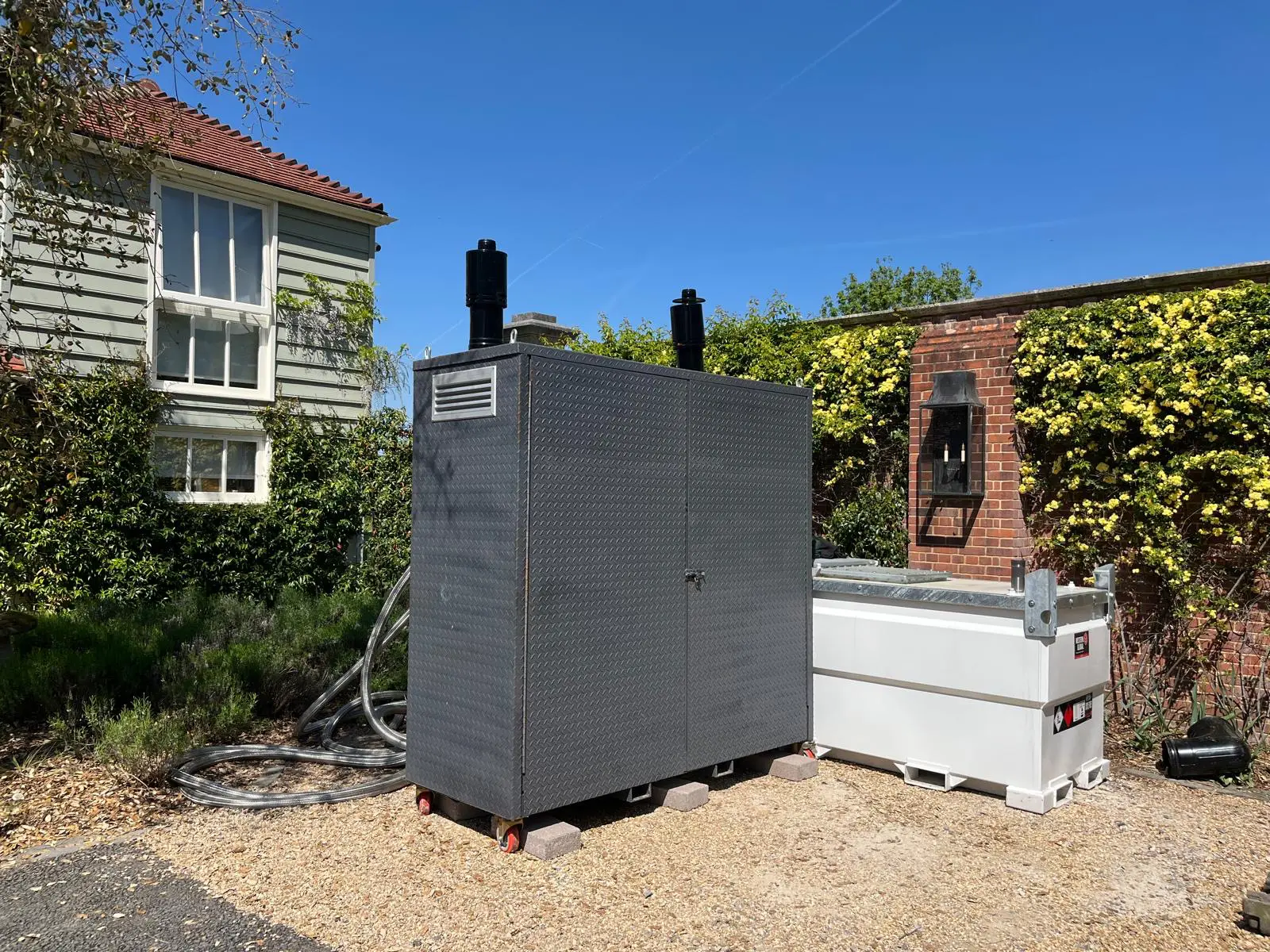

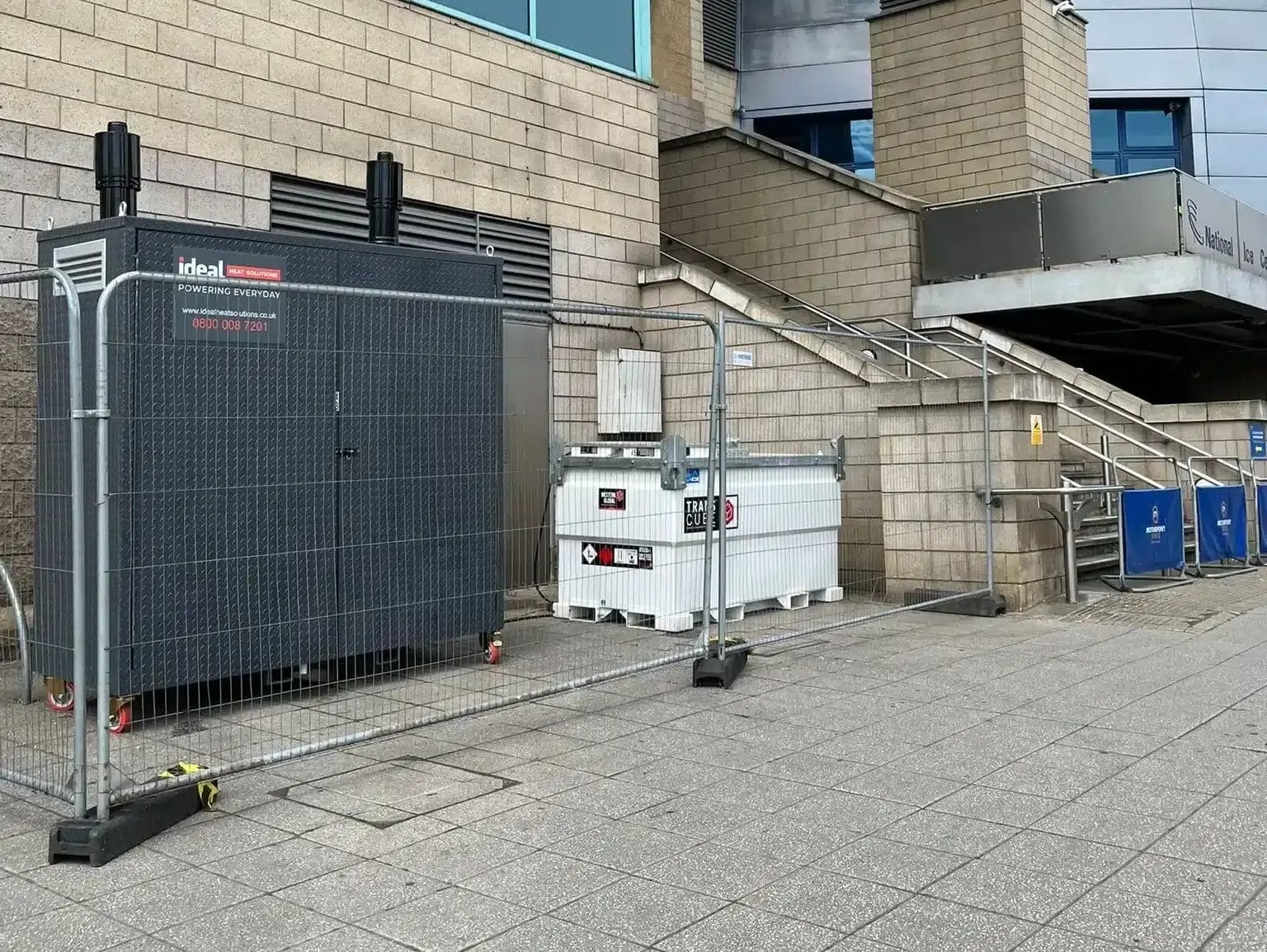

Our 140kW slimline oil boilers are the perfect solution for sites with constricted space, making them the perfect temporary boiler option for central city projects. Built in-house, these units provide the ideal ergonomic fit for sites of all shapes and sizes. They include pressurisation units, expansion on both primary and secondary sides of the heating circuits, plate heat exchangers and magnet filters to clean system water.

Our slimline boilers are also condensing boilers. When the oil on our 140kW unit is combusted, the resulting gases are then stored by the boiler and utilised for heating water, making them more sustainable.

• Schools
• Refineries
• Factories
