1120kW Gas/Oil Fired Packaged Boiler Plant
Need Help? 01622 632 918
- Specification PDF Download
- Maximum Output: 1120kW Gas or Oil
- Boiler: Viessmann
- Burner: Oil: Riello RL100 Gas: RS100
- Pumps: Grundfos TP80/150/4 (duty/standby)
- Temperature Range: Flow: 80 (90max) Return 70 (60min)
- LTHW Connections: DN100 (DN125 possible)
- Electrical: 60amp 3 phase
- Gas Connection: DN100
- Water Connection: 15mm
- Flow Rate: 16.6 kg/s and 120kPA (both pumps can run at 33.2kg/s)
- Dimensions (LxWxH): 6058mm x 2438mm x 2591mm
- Weight: 6 tonne (approx)
- Pressurisation Plant: Included (800L expansion)
- Telemetry: Trend IQ3 controller with GSM modem reporting.
- Variable Temperature: Yes
- Noise: 75dBA
- Handling Options: HIAB
- HWS Connection: DN40
- HWS Flow Rate: 1 Kg/s
- Max HWS Temperature: 60˚C
- Maximum Static: 6 BAR
- CWS Connection: DN40

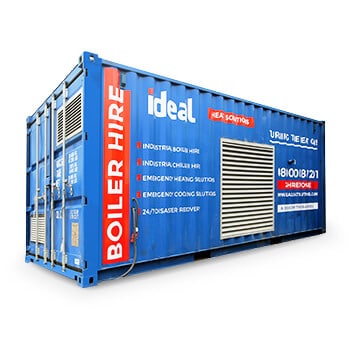

The 1120kW containerised boiler is the largest of our ready-made packaged plant room systems. It’s able to provide consistent heat up to 90°C for heat and hot water requirements in many different demanding environments. This specific boiler has a range of features, such as its diaphragm expansion tank and frost protection, to ensure that it is dependable and effective in all weather.
BMS Remote Monitoring
As with all of our mobile plant rooms, the 1120KW has an internal monitoring system. The Trend 963 Supervisor fitted within this boiler, ensures that any problems are communicated back to our headquarters automatically. It means that we are the first to know if there’s an issue, and we can respond to it quickly. The Trend also allows us to adjust certain settings remotely, saving time and expenses for unnecessary maintenance.
Our engineers are adept at finding solutions for some of the most challenging heating needs for our clients. Although this is at the higher end of our boiler range, we are also able to build customised systems that fit the exact specifications of your site. For large sites – whether for domestic, commercial or industrial needs – this 1120kW boiler plant is versatile enough to fulfil most requirements.
- Government Buildings
- Shopping Centres
