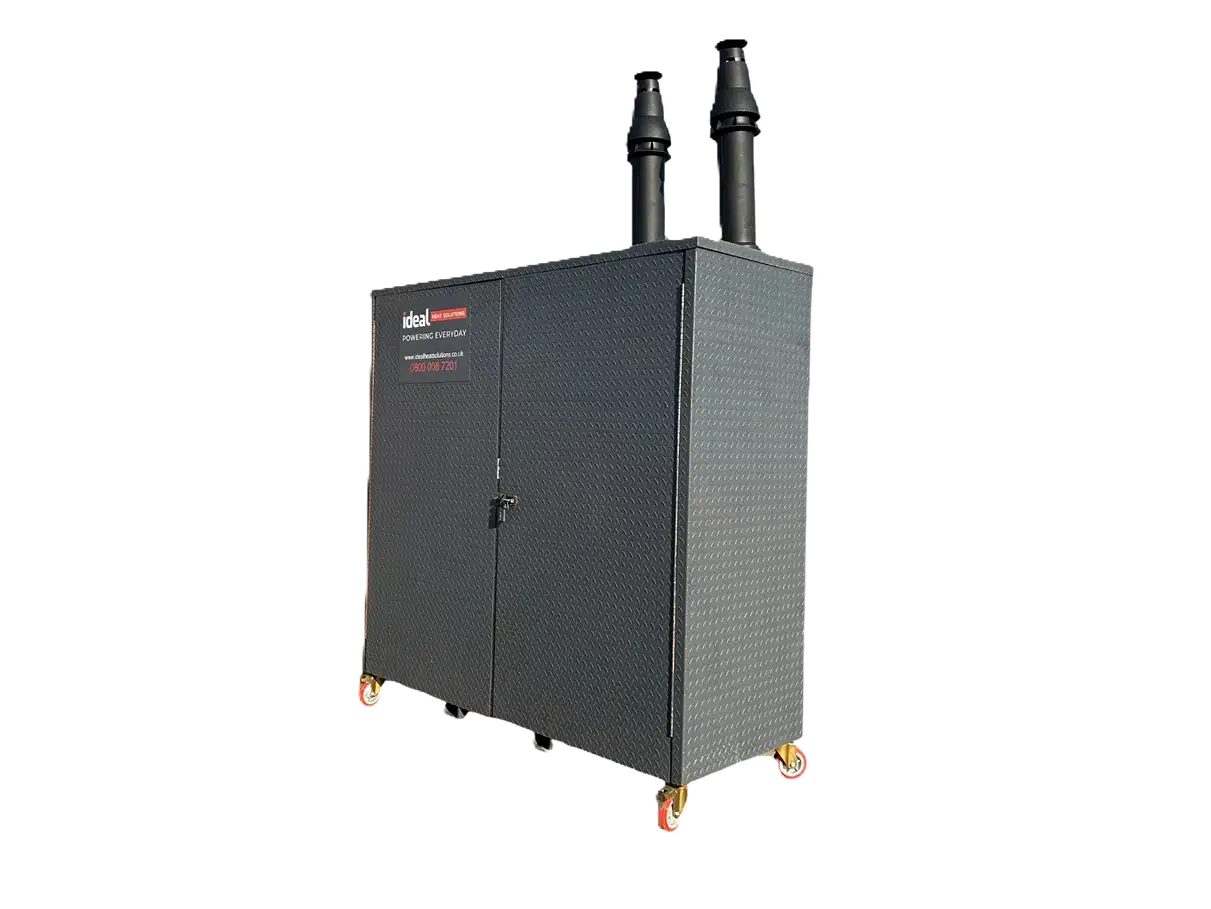

300kW Gas Boiler - Slimline Condensing

• Maximum Output: 300 kW Gas
• Boiler: 2 x Ideal Evo Max 2 - 150kW
• Boiler Output: 30 - 300kW
• Pump: Grundfos Magna 1
• Temperature Range: Min: 30°C Max: 85°C
• LTHW Connections: 2" BSP
• Electrical: 16 amp 1 phase
• Gas Connection: 2" BSP
• Water Connection: 15mm
• Flow Rate: 71 m3/h and 1.6MPa
• Dimensions (LxWxH): 2350mm x 900mm x 2200mm (plus 1010mm flue stub)
• Weight: 1.5 tonnes (approx.)
• Pressurisation Plant: Included - Primary: 50 litres Secondary: 110 litres
• Variable Temperature: Yes
• Noise: 46 dBA @1m
• Handling Options: Lifting Eyes / Forklift Pockets / Wheels for final positioning
• Maximum Static: 3 Bar

Our 300kW slimline gas boiler is a sustainable, condensing boiler designed for sites with constricted space. This unit includes pressurisation units, expansion on both primary and secondary sides of the heating circuits, plate heat exchangers and magnet filters to clean system water.

The condensing process has numerous benefits, including increased economy. These units produce heat with over 90% efficiency, higher than any non-condensing boiler, therefore customers will benefit from minimised fuel consumption and lower costs.

• Schools
• Refineries
• Factories
