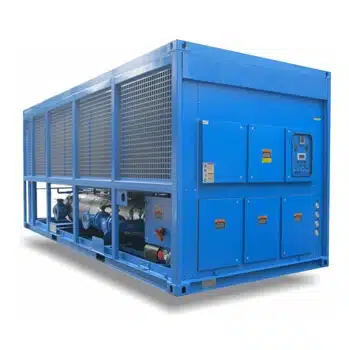

800kW IHS 800 Industrial Chiller
Need Help? 01622 632 918
- Nominal Cooling Capacity: 788kW
- Dimensions (LxWxH): 6m x 2.4m x 2.6m
- Weight: 9650kg
- Noise: 69
- Power Supply: 400V
- Typical Power Full Load: 438kW
- Minimum Process Flow: 16
- Maximum Process Flow: 50
- Water Connections Size: 4”
- Refrigerant: R134A
- Recommended Breaker: -
- Electrical Connection: -
- Absorbed Power Full Load: -
The 800 kW Chiller is the highest capacity chilling unit available at Ideal Heat Solutions. Very effective with screw compressors, this system is able to manage the most demanding chilling needs. Whether your requirements are for commercial or industrial facilities, this sturdy unit is able to fulfill the demands of your site.
The Pro-Dialog control system is one of the unique features of all Ideal Heat Solutions chilling units. It gives you full control over specific levels and operations, allowing you to tweak the compressor, fan, water pump, electrical energy demand, and other technical parameters. It’s easy to use, and gives you plenty of flexibility over the system.
The 800 kW Chiller is able to cool liquids down to -12°C, and can be integrated with a whole host of associated temperature control equipment, making any optimisation simple to achieve and effective.
The installation of this versatile unit is simple. Once we fit it in place, it’s as simple and plugging it in and adjusting the settings to your exact needs. We are on-hand to assist in every way. This doesn’t just go for the initial delivery of the system, but also with maintenance. A key feature with the 800 kW Chiller is that it has an internal monitor which tracks performance, alerting you when it needs attention from our specialists.
