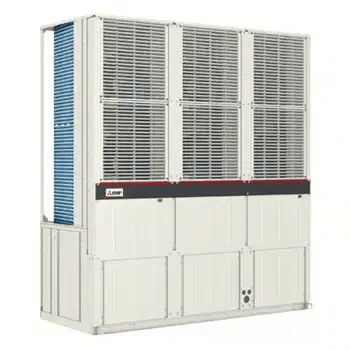

90kW Modular Air Cooled Chiller Unit
Need Help? 01622 632 918
- Nominal Cooling Capacity: 90
- Dimensions (LxWxH): 2.25m x 0.9m x 2.45m
- Weight: 992kg
- Power Supply: 3-phase 4-wire 380-400-415V 50/60Hz
Available for hire, our Modular Air Cooled Chiller Unit is designed to deliver excellent performance and efficiency whilst providing a wide operating range which starts from 90kW, all the way up to 540kW. Designed and manufactured by Mitsubishi, this modularised chiller boasts highly efficient components that deliver market leading low noise levels. Choosing a chiller with low noise levels is particularly important for customers that require a temporary chiller for a mixture of commercial and residential properties within the same area. The Modular Air Cooled Chiller Unit’s features include:
High efficiency inverter compressor
Both compressors serve separate plate heat exchangers located in the centre of the unit. By modulating the evaporating temperature individually, overall system efficiency can increase by an additional 3.9%, compared to single evaporating refrigeration cycles.
Two-stage cooling circuit
Each of the two refrigerant circuits has three separately controlled, inverter-driven DC fans, allowing for more precise control to save energy and optimise system efficiency.
Fan inverter control
Access for the control box and other service parts is located at the front of the unit to ease service and maintenance regimes.
The use of U-shaped heat exchangers allows for a greater surface area whilst also keeping the units much narrower than conventional chillers. Blue Fin anti-corrosion coating on the heat exchanger is also provided as standard.
U-shaped high performance compact air heat exchanger
The fan blades have improved ventilation characteristics and a newly designed rear edge that suppresses wind turbulence to increase efficiency and reduce noise levels.
The in-built internal header pipes simplify design, installation and maintenance and makes the e-series range modular and suitable for almost any situation.
Internal header pipe
A dedicated digital indicator inside the PCB displays high pressure, low pressure, water inlet temperature, water outlet temperature, error codes etc., thereby aiding service and maintenance.
